This post follows on from this one. The purpose of posts in this category is for me to learn more about the research being done in quantum groups. This post looks at this paper of Schmidt.

# Preliminaries

## Compact Matrix Quantum Groups

The author gives the definition and gives the definition of a (left, quantum) group action.

### Definition 1.2

Let $G$ be a compact matrix quantum group and let $C(X)$ be a $\mathrm{C}^*-algebra$. An (left) action of $G$ on $X$ is a unital *-homomorphism $\alpha: C(X)\rightarrow C(X)\otimes C(G)$ that satisfies the analogue of $g_2(g_1x)=(g_2g_1)x$, and the Podlés density condition:

$\displaystyle \overline{\text{span}(\alpha(C(X)))(\mathbf{1}_X\otimes C(G))}=C(X)\otimes C(G)$.

## Quantum Automorphism Groups of Finite Graphs

Schmidt in this earlier paper gives a slightly different presentation of $\text{QAut }\Gamma$. The definition given here I understand:

### Definition 1.3

The quantum automorphism group of a finite graph $\Gamma=(V,E)$ with adjacency matrix $A$ is given by the universal $\mathrm{C}^*$-algebra $C(\text{QAut }\Gamma)$ generated by $u\in M_n(C(\text{QAut }\Gamma))$ such that the rows and columns of $u$ are partitions of unity and:

$uA=Au$.

_______________________________________

The difference between this definition and the one given in the subsequent paper is that in the subsequent paper the quantum automorphism group is given as a quotient of $C(S_n^+)$ by the ideal given by $\mathcal{I}=\langle Au=uA\rangle$… ah but this is more or less the definition of universal $\mathrm{C}^*$-algebras given by generators $E$ and relations $R$:

$\displaystyle \mathrm{C}^*(E,R)=\mathrm{C}^*( E)/\langle \mathcal{R}\rangle$

$\displaystyle \Rightarrow \mathrm{C}^*(E,R)/\langle I\rangle=\left(\mathrm{C}^*(E)/R\right)/\langle I\rangle=\mathrm{C}*(E)/(\langle R\rangle\cap\langle I\rangle)=\mathrm{C}^*(E,R\cap I)$

where presumably $\langle R\rangle \cap \langle I \rangle=\langle R\cap I\rangle$ all works out OK, and it can be shown that $I$ is a suitable ideal, a Hopf ideal. I don’t know how it took me so long to figure that out… Presumably the point of quotienting by (a presumably Hopf) ideal is so that the quotient gives a subgroup, in this case $\text{QAut }\Gamma\leq S_{|V|}^+$ via the surjective *-homomorphism:

$C(S_n^+)\rightarrow C(S_n^+)/\langle uA=Au\rangle=C(\text{QAut }\Gamma)$.

_______________________________________

## Compact Matrix Quantum Groups acting on Graphs

### Definition 1.6

Let $\Gamma$ be a finite graph and $G$ a compact matrix quantum group. An action of $G$ on $\Gamma$ is an action of $G$ on $V$ (coaction of $C(G)$ on $C(V)$) such that the associated magic unitary $v=(v_{ij})_{i,j=1,\dots,|V|}$, given by:

$\displaystyle \alpha(\delta_j)=\sum_{i=1}^{|V|} \delta_i\otimes v_{ij}$,

commutes with the adjacency matrix, $uA=Au$.

By the universal property, we have $G\leq \text{QAut }\Gamma$ via the surjective *-homomorphism:

$C(\text{QAut }\Gamma)\rightarrow C(G)$, $u\mapsto v$.

### Theorem 1.8 (Banica)

Let $X_n=\{1,\dots,n\}$, and $\alpha:F(X_n)\rightarrow F(X_n)\otimes C(G)$, $\alpha(\delta_j)=\sum_i\delta_i\otimes v_{ij}$ be an action, and let $F(K)$ be a linear subspace given by a subset $K\subset X_n$. The matrix $v$ commutes with the projection onto $F(K)$ if and only if $\alpha(F(K))\subseteq F(K)\otimes C(G)$

### Corollary 1.9

The action $\alpha: F(V)\rightarrow F(V)\otimes C(\text{QAut }\Gamma)$ preserves the eigenspaces of $A$:

$\alpha(E_\lambda)\subseteq E_\lambda\otimes C(\text{QAut }\Gamma)$

Proof: Spectral decomposition yields that each $E_\lambda$, or rather the projection $P_\lambda$ onto it, satisfies a polynomial in $A$:

$\displaystyle P_\lambda=\sum_{i}c_iA^i$

$\displaystyle \Rightarrow P_\lambda A=\left(\sum_i c_i A^i\right)A=A P_\lambda$,

as $A$ commutes with powers of $A$ $\qquad \bullet$

# A Criterion for a Graph to have Quantum Symmetry

### Definition 2.1

Let $V=\{1,\dots,|V|\}$. Permutations $\sigma,\,\tau: V\rightarrow V$ are disjoint if $\sigma(i)\neq i\Rightarrow \tau(i)=i$, and vice versa, for all $i\in V$.

In other words, we don’t have $\sigma$ and $\tau$ permuting any vertex.

### Theorem 2.2

Let $\Gamma$ be a finite graph. If there exists two non-trivial, disjoint automorphisms $\sigma,\tau\in\text{Aut }\Gamma$, such that $o(\sigma)=n$ and $o(\tau)=m$, then we get a surjective *-homomorphism $C(\text{QAut }\Gamma)\rightarrow C^*(\mathbb{Z}_n\ast \mathbb{Z}_m)$. In this case, we have the quantum group $\widehat{\mathbb{Z}_n\ast \mathbb{Z}_m}\leq \text{QAut }\Gamma$, and so $\Gamma$ has quantum symmetry.

Some notes on this paper.

### 1. Introduction and Main Results

A tree has no symmetry if its automorphism group is trivial. Erdos and Rényi showed that the probability that a random tree on $n$ vertices has no symmetry goes to zero as $n\rightarrow \infty$.

Banica (after Bichon) wrote down with clarity the quantum automorphism group of a graph. It contains the usual automorphism group. When it is larger, the graph is said to have quantum symmetry.

Lupini, Mancinska, and Roberson show that almost all graphs are quantum antisymmetric. I am fairly sure this means that almost all graphs have no quantum symmetry, and furthermore for almost all (as $n\rightarrow \infty$) graphs the automorphism group is trivial.

The paper in question hopes to show that almost all trees have quantum symmetry — but at this point I am not sure if this is saying that the quantum automorphism group is larger than the classical.

## 2. Preliminaries

### 2.1 Graphs and Trees

Standard definitions. No multi-edges. Undirected if the edge relation is symmetric. As it is dealing with trees, this paper is concerned with undirected graphs without loops, and identify $V=\{v_1,\dots,v_n\}\cong \{1,2,\dots,n\}$. A path is a sequence of edges. We will not see cycles if we are discussing trees. Neither will we talk about disconnected graphs: a tree is a connected graph without cycles (this throws out loops actually.

The adjacency matrix of a graph is a matrix $A=(a_{ik})_{i,j\in V}$ with $a_{ij}=1$ iff there is an edge connected $i$ and $j$. The adjacency matrix is symmetric.

### 2.2 Symmetries of Graphs

An automorphism of a graph $\Gamma$ is a permutation of $V$ that preserves adjacency and non-adjacency. The set of all such automorphisms, $\text{Aut }\Gamma$, is a group where the group law is composition. It is a subgroup of $S_n$, and $S_n$ itself can be embedded as permutation matrices in $M_n(\mathbb{C})$. We then have

$\text{Aut }\Gamma=\{\sigma\in S_n\,:\,\sigma A=A\sigma\}\subseteq S_n$.

If $\text{Aut }\Gamma=\{e\}$, it is asymmetric. Otherwise it is or rather has symmetry.

### 2.3 Compact Matrix Quantum Groups

compact matrix quantum group is a pair $(C(G),u)$, where $C(G)$ is a unital $\mathrm{C}^\ast$-algebra, and $u=(u_{ij})_{i,j=1}^n\in M_n(C(G))$ is such that:

• $C(G)$ is generated by the $u_{ij}$,
• There exists a morphism $\Delta:C(G)\rightarrow C(G)\otimes C(G)$, such that $\Delta(u_{ij})=\sum_{k=1}^n u_{ik}\otimes u_{kj}$
• $u$ and $u^T$ are invertible (Timmermann only asks that $\overline{u}=(u_{ij}^\ast)$ be invertible)

The classic example (indeed commutative examples all take this form) is a compact matrix group $G\subseteq U_n(\mathbb{C})$ and $u_{ij}:G\rightarrow \mathbb{C}$ the coordinates of $G$.

#### Example 2.3

The algebra of continuous functions on the quantum permutation group $S_n^+$ is generated by $n^2$ projections $u_{ij}$ such that the row sums and column sums of $u=(u_{ij})$ both equal $\mathbf{1}_{S_n^+}$.

The map $\varphi:C(S_{n}^+)\rightarrow C(S_n)$, $u_{ij}\mapsto \mathbf{1}_{\{\sigma\in S_n\,|\,\sigma(j)=i\}}$ is a surjective morphism that is an isomorphism for $n=1,2,3$, so that the sets $\{1\},\,\{1,2\},\,\{1,2,3\}$ have no quantum symmetries.

### 2.4 Quantum Symmetries of Graphs

#### Definition 2.4 (Banica after Bichon)

Let $\Gamma=(V,E)$ be a graph on $n$ vertices without multiple edges not loops, and let $A$ be its adjacency matrix. The quantum automorphism group $\text{QAut }\Gamma$ is defined as the compact matrix group with $\mathrm{C}^\ast$-algebra:

$\displaystyle C(\text{QAut }\Gamma)=C(S_n^+)/\langle uA=Au\rangle$

For me, not the authors, this requires some work. Banica says that $\langle uA=Au\rangle$ is a Hopf ideal.

Hopf ideal is a closed *-ideal $I\subset C(G)$ such that

$\Delta(I)\subset C(G)\otimes I+I\otimes C(G)$.

Classically, $I$ the set of functions vanishing on a distinguished subgroup. The quotient map is $f\mapsto f+I$, and $f+I=g+I$ if their difference is in $I$, that is if they agree on the subgroup.

The classical version of $Au=uA$ ends up as $a_{ij}=a_{\sigma(i)\sigma(j)}$… the group in question the classical $\text{Aut }\Gamma$. In that sense perhaps $Au=uA$ might be better given as $fA=Af$.

Easiest thing first, is it a *-ideal? Well, take the adjoint of $fA=Af\Rightarrow A^*f^*=f^*A^*$ and $A=A^*$ so $I$ is *closed. Suppose $f\in I$ and $g\in C(S_n^+)$… I cannot prove that this is an ideal! But time to move on.

### 3. The Existence of Two Cherries

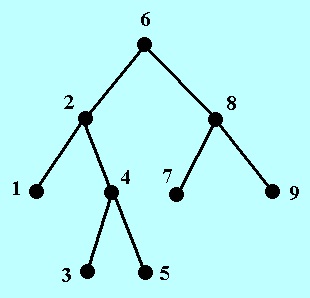

In this section the authors will show that almost all trees have two cherries. Definition 3.4 says with clarity what a cherry is, here I use an image [credit: www-math.ucdenver.edu]:

(3,5,4) and (7,9,8) are cherries

#### Remark 3.2

If a graph admits a cherry $(u_1,u_2,v)$, the transposition $(u_1\quad u_2)$ is a non-trivial automorphism.

#### Theorem 3.3 (Erdos, Réyni)

Almost all trees contains at least one cherry in the sense that

$\displaystyle \lim_{n\rightarrow \infty}\mathbb{P}[C_n\geq 1]=1$,

where $C_n$ is #cherries in a (uniformly chosen) random tree on $n$ vertices.

#### Corollary 4.3

Almost all trees have symmetry.

The paper claims in fact that almost all trees have at least two cherries. This will allow some $S_4^+$ action to take place. This can be seen in this paper which is the next point of interest.
